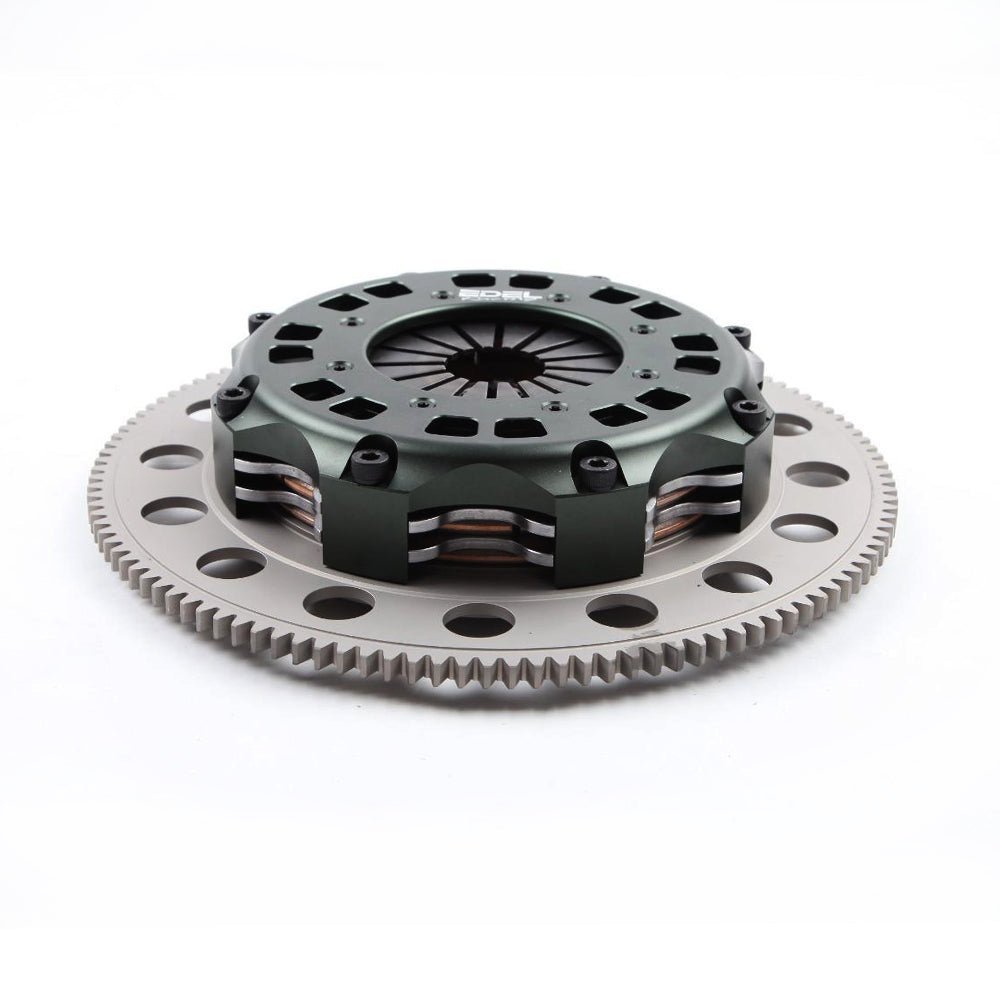

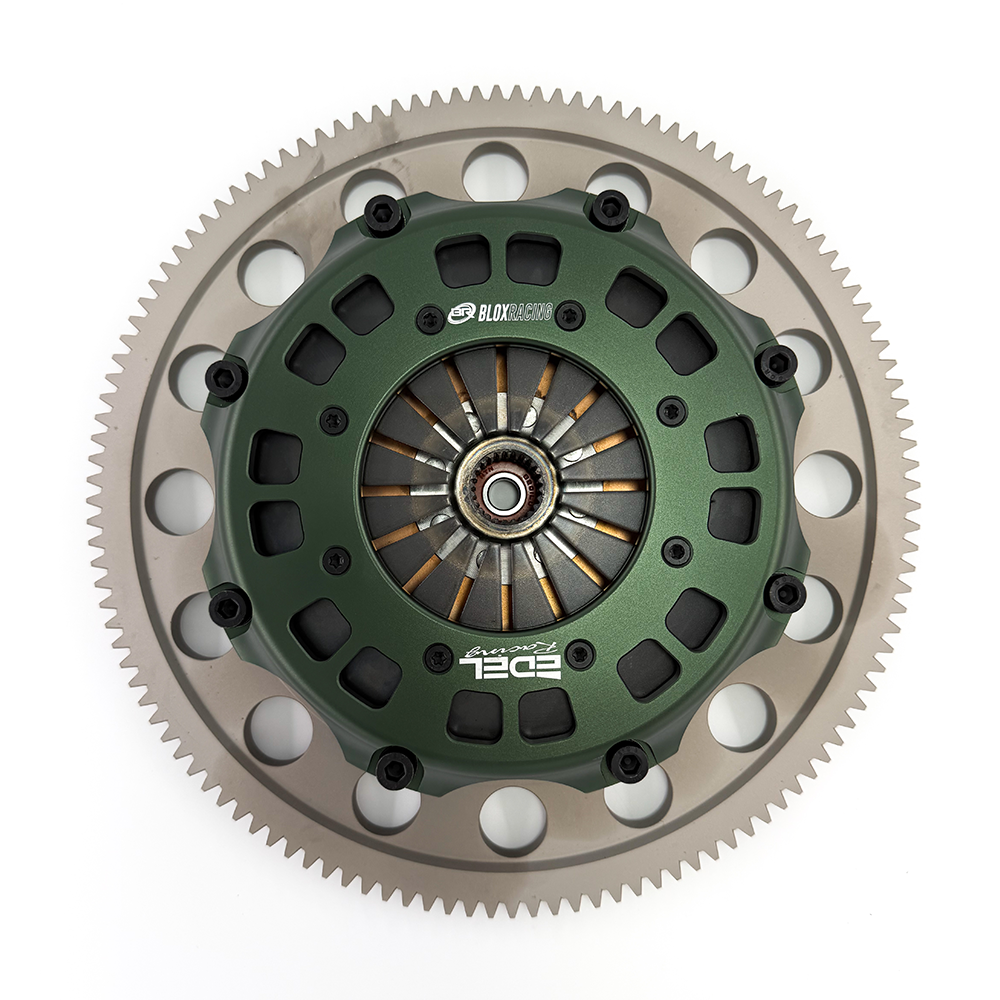

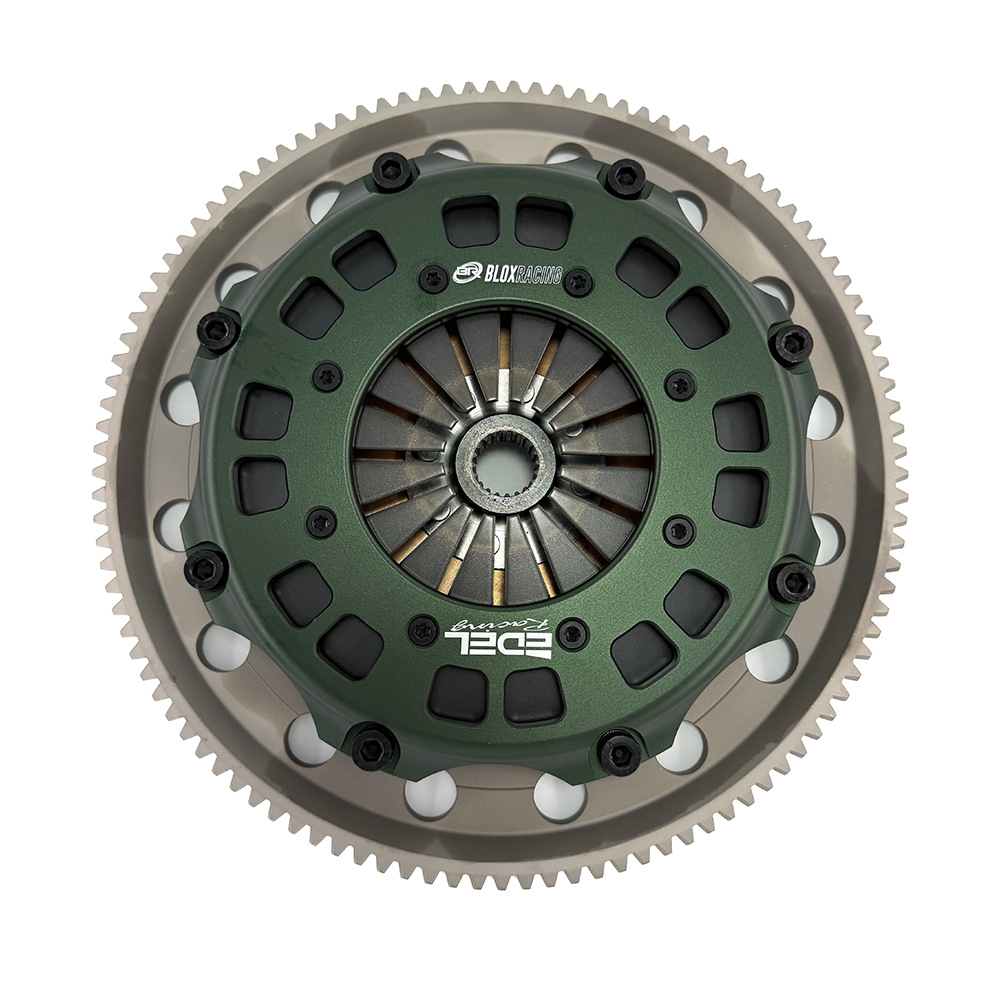

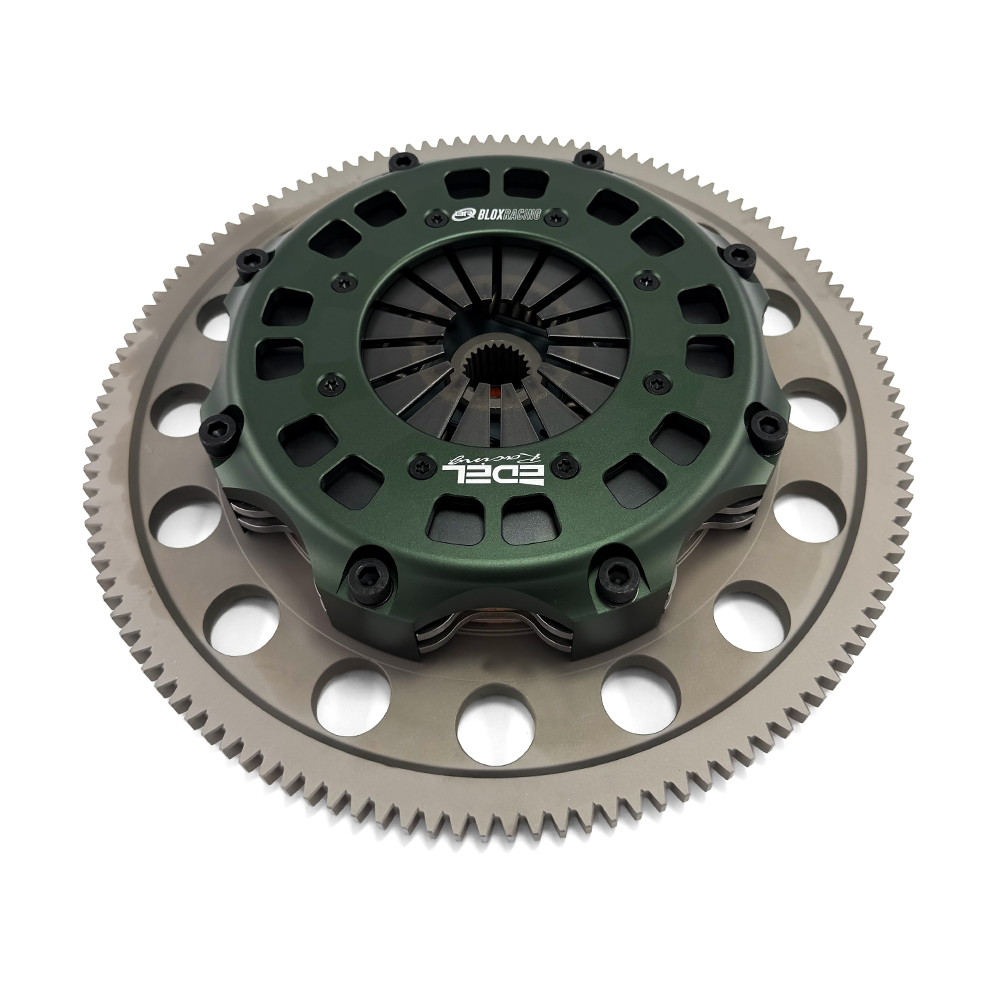

Our K-Series Twin Disc Race 7.25" clutch and lightweight flywheel by EDEL for BLOX Racing have been extensively tested and are proven winning products. Our Twin Disc system is an upgraded clutch kit for those who want a performance clutch for their road or track day car. The kit is designed for Turbo or All Motor that have a large increase in power and torque. Our kit includes only the highest grade components and is designed to replace factory OEM parts - no modification is required. Utilizing premium organic friction material for high heat tolerance, quick recovery, and long life. Crafted from aircraft quality aluminum, our vented pressure plate provides a smooth and precise feel with easy modulation and designed to increase clamp load. All pressure plates are load tested for quality assurance.
Kit comes complete with a lightweight billet flywheel, throw-out bearing, alignment tool, and utilizes solid center hub discs and a special design with low moment of inertia for superior drag, track, road, and circuit driving.
FEATURES:
Clutch Type: Push Style Release Mechanism
Pressure Plate Cover: Aircraft Quality Aluminum Alloy
Flywheel Design: One-Piece Billet Chromoly
Bearing Contact Diameter: 44-52mm
Bearing Load @38mm: 210kg
Release Travel Required: 5mm
Clutch Disc Diameter: 7.25" (185mm)
Clutch Disc Thickness: .250" (6.35mm)
Clutch Disc Quantity: Twin
Clutch Disc Type: Solid
Clutch Disc Material: Cerametallic
Torque Capacity: up to 850ft/lb
Horsepower: up to 1200hp
APPLICATIONS:
K20
K24
