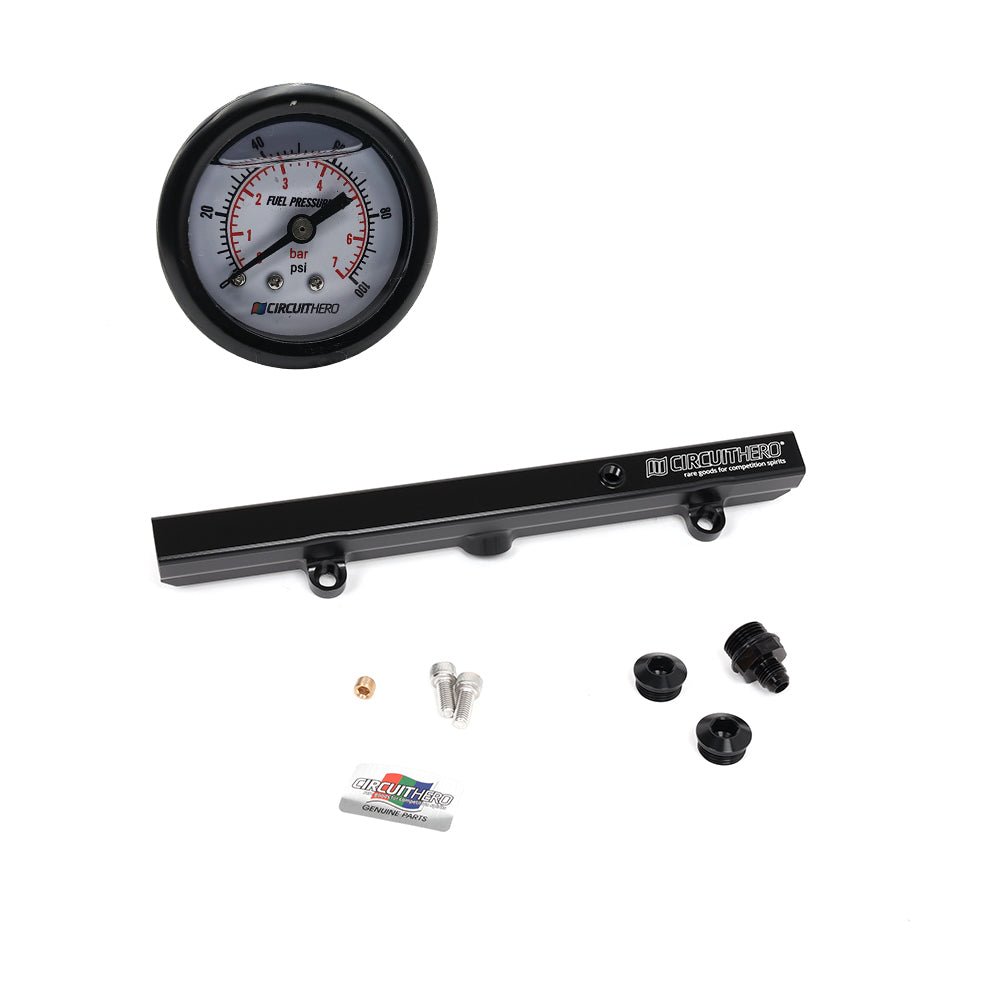

Whether upgrading for additional fuel delivery needs, to run upgraded fuel lines, or to simply clean up your engine bay, Circuit Hero's Aluminum Fuel Rail Combo makes sure those needs are met.

With it's 1/8 NPT port on top, -8 O-ring boss (ORB) ports on both ends and another -8 ORB port located at the middle of the rail, there are a variety of ways you can set the rail up for your car and easily mount a either a black or white fuel pressure gauge directly on the rail.

Features

• 7/8" Bore for Feeding over 1800hp
• -10 ORB Center-feed Port for Tucked Fuel Lines

• -10 ORB End Ports for OEM, Side-Feed, or Return Setups
• 1/8 NPT Gauge Port
• Universal K-Series Engine Fuel Rail
• Crafted From Billet 6061-T6 Aluminum
• Allows for Tucked Fuel Lines
• Available in Anodized Black Finish

• Included Fittings
  • (2) Titanium Socket Head Cap Screw M8x1.0x20mm
  • (2) -10 ORB Plug
  • (1) -10 ORB to -6AN Adapter Fitting
  • (1) 1/8x27 NPT Pipe Plug

The Circuit Hero Liquid-Filled Fuel Pressure gauge accurately measures the engine's fuel pressure.  The fuel pressure gauge is a vital tool in making sure your engine's fuel system is functioning properly and providing consistent fuel at all times.

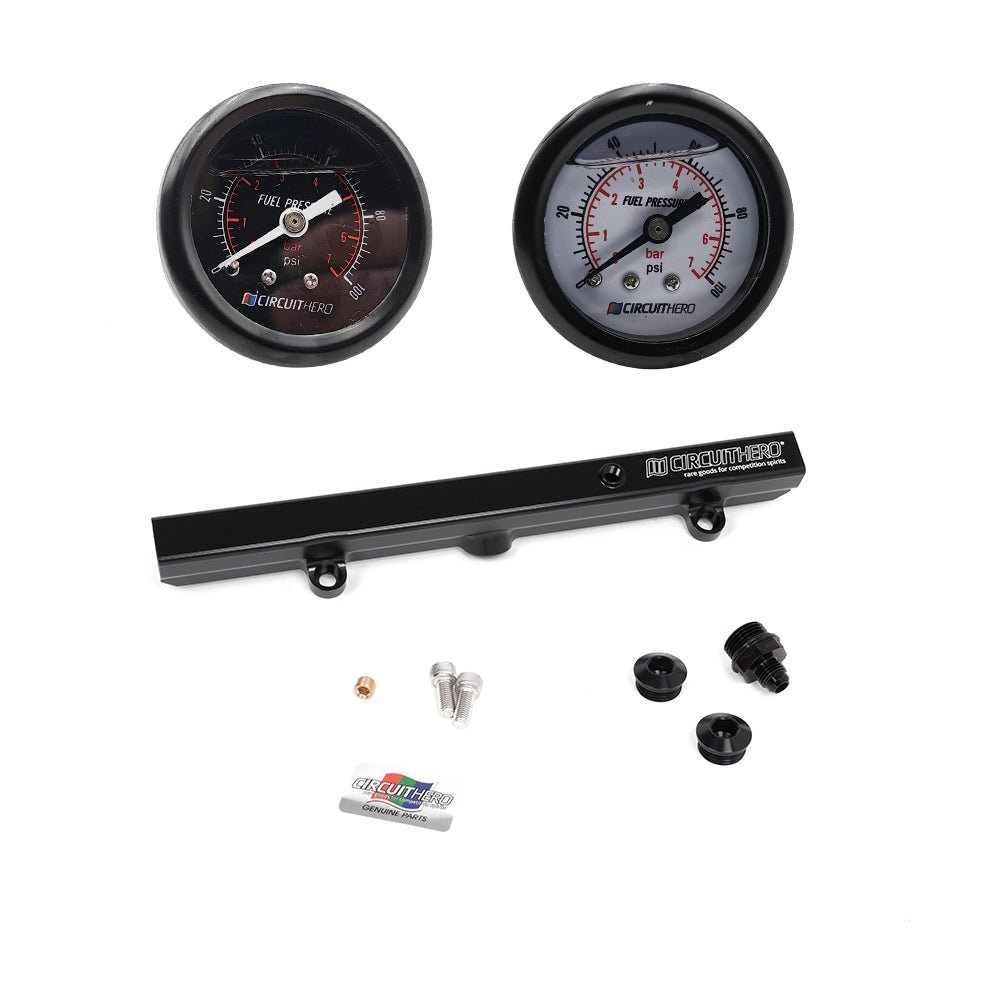

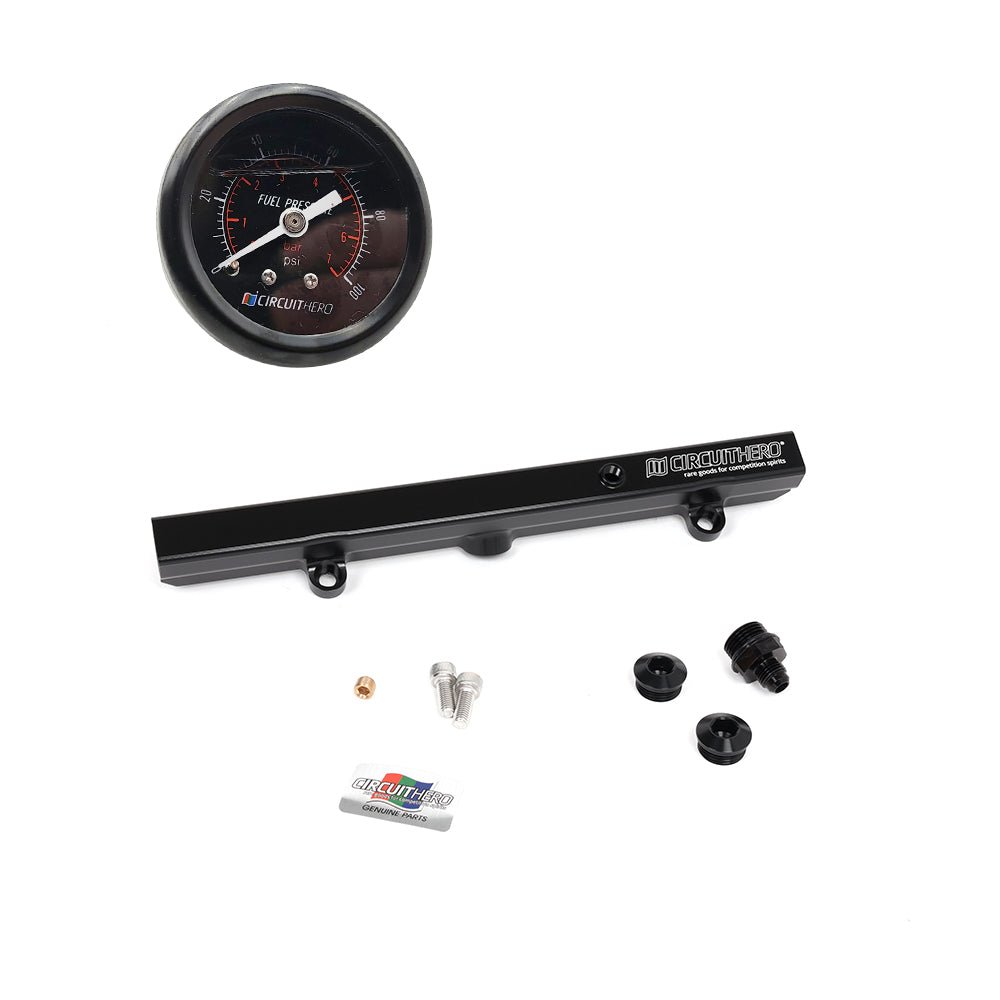

The Circuit Hero Liquid-Filled Fuel Pressure gauge is available with a black or white face.

Features

• Mechanical Operation
• 0 - 100 PSI Range
• Liquid filled
• 1/8" NPT thread

Applications

• K-Series

 Part Numbers:  CH-FR-K-CB, CH-FR-K-CW
